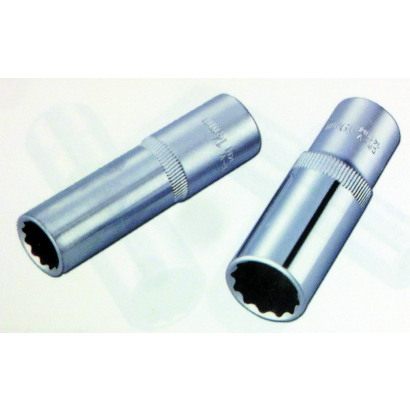

Deep Socket (12pt Flank) Finish: Double Finish & Knurled
9.5 mm (3/8")
SIZE D1(mm) Max D2(mm) L(mm) W.(g)
6 10 17 63 50
7 11 17 63 50
8 12.2 17 63 50
9 13.5 17 63 50
10 14.7 17 63 50
11 16 17 63 50
12 17 17 63 64
13 18 17 63 64
14 19.7 18 63 74
15 21 19 63 74
16 22 19 63 85
17 23.5 21 63 103
18 24.7 22 63 123
19 26 22 63 116
20 27.2 24 63 143
21 28 24 63 139
22 29.7 26 63 171
23 31.8 27 63 198
24 32 27 63 178

12.7 mm (1/2")
SIZE D1(mm) Max D2(mm) L(mm) W.(g)
8 14 22 77 96
9 14.3 22 77 99
10 15.5 22 77 85
11 16.7 22 77 93
12 18 22 77 99
13 19.2 22 77 109
14 20.5 22 77 114
15 21.7 21.7 77 110
16 22 22 77 99
17 24 22 77 121
18 25.5 23 77 150
19 26 23 77 135
20 28 24 77 162
21 28 24 77 159
22 30 26 77 187
24 32 27 77 211
27 36 30 77 270
30 40 34 77 384
32 42 36 77 386
