Socket sets & AccessoriesIndividual Accessories

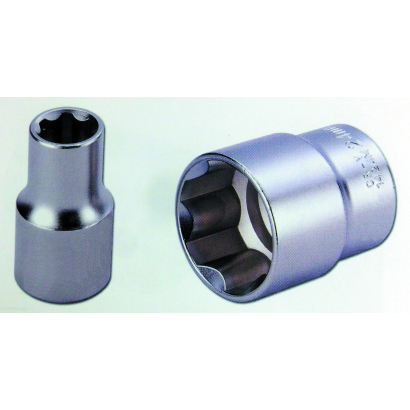

Socket (Super Lock) Finish: Mat Finish
6.35 mm (1/4")
SIZE D1(mm) Max D2(mm) L(mm) W.(g)
3.2 5.9 12 25 10
4 6.9 12 25 10
4.5 7.5 12 25 10
5 8.2 12 25 10
5.5 8.8 12 25 10
6 9.6 12 25 11
7 10.9 12 25 11
8 12 12 25 12
9 13 12 25 15
10 14 12.3 25 16
11 16 14 25 23
12 17 15 25 25
13 18 16 25 29
14 19.7 17 25 36

9.5 mm (3/8")
SIZE D1(mm) Max D2(mm) L(mm) W.(g)
6 10 17 28 25
7 11 17 28 25
8 12.2 17 28 25
9 13.5 17 28 25
10 14.7 17 28 25
11 16 17 28 25
12 17 16.5 28 25
13 18 17 28 28
14 19.7 18 28 38
15 21 19 28 40
16 22 19 28 41
17 23.5 21 28 59
18 24.7 22 30 68
19 26 22 30 68
20 27.2 24 30 65
21 28 24 30 65
22 29.7 26 30 83
23 31.8 27 30 87
24 32 27 30 87

12.7 mm (1/2")
SIZE D1(mm) Max D2(mm) L(mm) W.(g)
8 14 22 38 47
9 14.3 22 38 48
10 15.5 22 38 48
11 16.7 22 38 50
12 18 22 38 50
13 19.2 22 38 53
14 20.5 22 38 54
15 21.7 21.3 38 56
16 22 21.3 38 53
17 24 22 38 61
18 25.5 23 38 79
19 26 23 38 65
20 28 24 38 79
21 28 24 38 77
22 30 26 38 94
23 31.7 27 38 104
24 32 27 40 107
25 34 29 42 140
26 35.5 29.5 42 131
27 36 30 42 145
28 38 32 44 177
29 38 32 44 164
30 40 34 45 193
32 42 36 45 212
